Measurement / 3D Scan
Six Steps for
a perfect Simulation
We Scan
// We introduce to cad
// We align
// Best Fit Alignment
// R.P.S. Alignment
We introduce to cad
We align

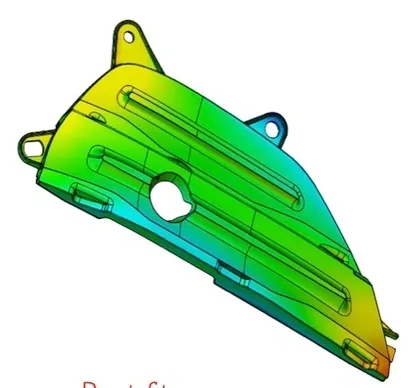

Best Fit Alignment
R.P.S. Alignment
You get easy to understand results
Introduction
Quality and Inspection
Get a larger understanding of what your part is really up to // Part to CAD Surface comparisons // Full GD&T // 2D & 3D Reporting // and much more!
Quality and Inspection
- Tool reconstruction
- Part reconstruction
- Scanning of design
- CAD models for further processing
- Documentation
- Evaluation of 2D & 3D dimensions

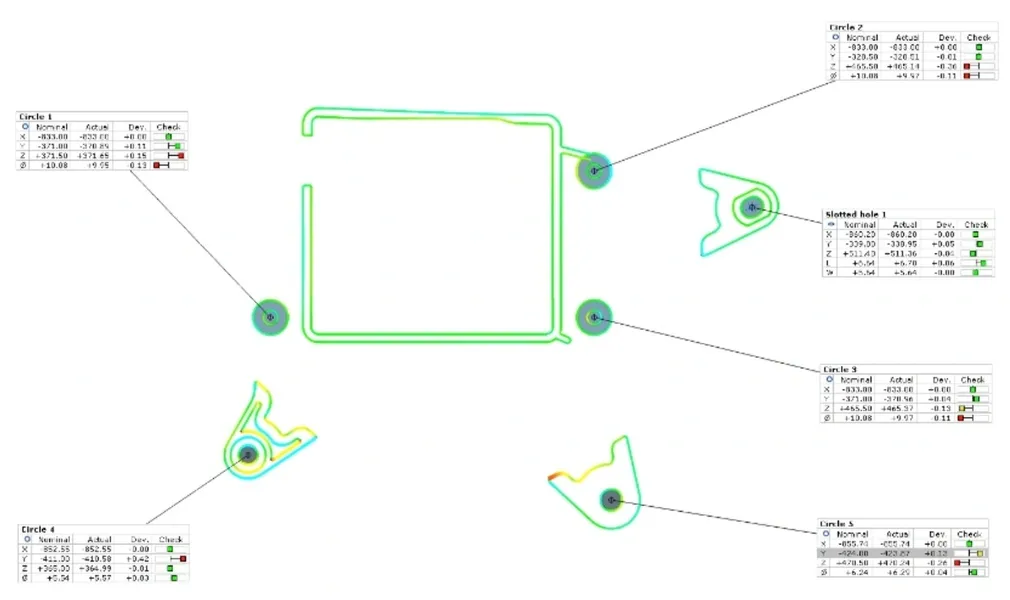

- Target / actual comparison
- Full measurement report
- Reverse engineering
- Measurement fixtures / gauges
